Подробная информация о продукте:
Оплата и доставка Условия:
|
Материал проводника: | NiCr35/20 | Тип: | Изолированные |
---|---|---|---|
Применение: | Нагрев | Тип проводника: | застрял |
Изоляционный материал: | ПВХ | Куртка: | ПВХ |

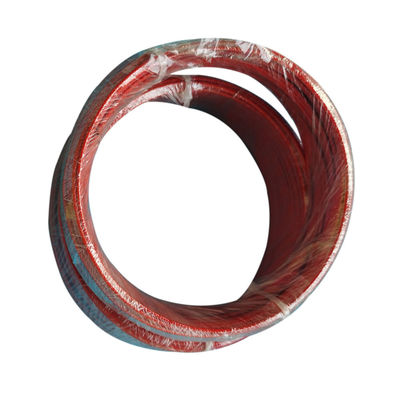

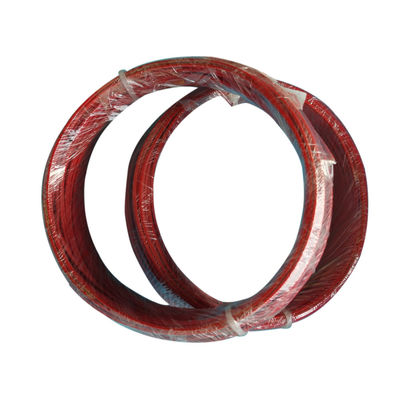

Нагревательный кабель с ПВХ-изоляцией - Nicr35/20, Nicr AA, проводники из сплавов Inconel 600 и 625
Параметр Спецификация Стандарт/Ссылка
ИзоляцияПВХ (поливинилхлорид) UL 758 / GB 12706
Максимальная рабочая температура 105°C непрерывно(120°C кратковременно) Термический предел ПВХ
Номинальное напряжение0,6/1 кВ переменного/постоянного тока IEC 60227
Варианты проводниковNicr35/20, Nicr AA, Inconel 600, Inconel 625 ASTM B344
Диапазон удельного сопротивленияNicr35/20: ~1,10 μΩ·мInconel 625: 1,30 μΩ·м Свойства сплава
Сплав Макс. температура Основное преимущество Идеальное применение
Nicr35/201200°C Стойкость к окислению Промышленные нагреватели, печи
Nicr AA1150°C Высокое содержание алюминия (защита от провисания) Нагревательные элементы печей
Inconel 6001000°C Стойкость к кислотам/щелочам Оборудование для химической обработки
Inconel 6251000°C Стойкость к хлоридам/питтингу Морские платформы, морская среда
"Оптимизировано для промышленных систем с умеренным нагревом:
Материал | Химический состав (%) | ||||
Ni | Fe | Cr | Si | Al | |
NiCr80/20 | Bal | <0,8 | 20-22 | 0,7-1,5 | <0.5 |
Long-term max standing temperature | 105ºC |
Shor-term max standing temperature | 120ºC |
Dia of NiCr80/20 | Resistance value (ohm/m) | Thickness of insulation | OD of cable |
0.2mm | 34.7 | 0.3mm | 0.7mm |
0.5mm | 5.55 | 0.35mm | 1.2mm |
0.8mm | 2.16 | 0.35mm | 1.5mm |
1.0mm | 1.38 | 0.40mm | 1.8mm |
1.2mm | 0.965 | 0.45mm | 2.1mm |
1.5mm | 0.617 | 0.50mm | 2.5mm |
Remarks: The size can be changed if special requirement.
The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm
Available conductor alloy grade as follows:
NiCr60/15 | CuNi44 | CuNi23 | OCr25Al5 | OCr21Al6 |
Nickel 200 | Nickel 201 | Nickel 212 | Tinned copper wire | CuNi6 |
CuNi10 | NiCr35/20 | NiCr AA | Inconel 600 | Inconel 625 |
Available color: Black, white, green, red, yellow, blue
FAQ:
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
