0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone

Оставьте нам сообщение
Сертификация
Китай Ohmalloy Material Co.,Ltd Сертификаты
Китай Ohmalloy Material Co.,Ltd Сертификаты
Я ищу на долгое время плиты нихрома, и успешно купленный им от материала Охмаллой. ОХМАЛЛОИ обеспечивают реальное хорошее обслуживание в обслуживании сплава и могут всегда помогать мне в обнаружении правильного сплава сопротивления.

—— Проводка Майк

ОХМАЛЛОИ может провие я только провод 1.0мм с коротким периодом времени, это сплава 1кг Ковар действительно изумительно. Спасибо

—— Джаней

Действительно профессиональный в проводе термопары и кабеле, чего я хочу как раз может получить от ОХМАЛЛОИ

—— Крис

Покрытый эмалью константан 0.08мм, я никогда не рассчитываю получить только 2кг его. Но поставка ОХМАЛЛОИ оно ко мне с хорошим качеством. Бог Иисус! Такой надежный поставщик от фарфора

—— Аарон

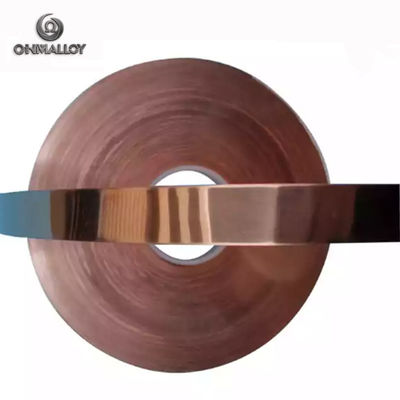

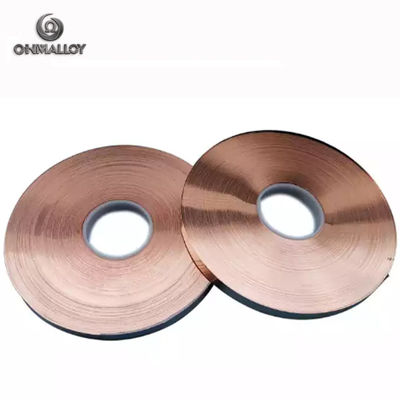

0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone

0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone

Большие изображения :  0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone Лучшая цена

Подробная информация о продукте:
Место происхождения: Китай (Шанхай)
Фирменное наименование: OHMALLOY
Сертификация: ISO9001-2008
Номер модели: C11000
Оплата и доставка Условия:
Количество мин заказа: 100 кг
Упаковывая детали: Пакет деревянных коробок
Время доставки: 15 дней
Условия оплаты: L/C, T/T, Moneygram
Поставка способности: 50 тонн в месяц
Подробное описание продукта
Материал: Медь Размер: 0.15*35 мм
Плотность: 8,9 Температура плавления: 1083 ℃
Приложение: электрические пружины

0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone

Pure copper, as the name suggests, is the copper with the highest copper content, because the color purple red is also known as red copper, the main component is copper plus silver, the content is 99.5 ~ 99.95%; Main impurity elements: phosphorus, bismuth, antimony, arsenic, iron, nickel, lead, tin, sulfur, zinc, oxygen, etc. Used for making conductive equipment, high - grade copper alloy, copper - based alloy


pure copper has grades T1 T2 T3
we have our own cooperative copper factory, mainly do aluminum bronze and brass, both have sheet, bar, pipe and wire



Specifications
C3604 environmental copper with high strength, compact structure, good corrosion resistance, cutting, drilling and other machining performance is excellent, with machining copper scrap uniform fine, smooth surface etc, apply to high-speed automatic processing. Used for bolt, nut, screw, shaft, gear, valve and clocks, carburetor parts, IT industry, precise instrument. The GD precision hexagon copper rod can be used to import high-grade brand C3604 CNC machine tool processing and manufacturing high precision parts.





Industry variety Code Grade

Thickness

(mm)

width

(mm)

State

Piece Weight

(KG/Piece)

Executive standard
Cable tape

T10150,T10180,

T10900,T11050,

C12200

TU1,TU2,T1,

T2,TP2

0.05-0.8 15-420 060 50-2000

GB/T2059

-2017

Transformer tape T10150,T11050 TU1,T2 0.30-3.00 10-420 060 ≤6000
Copper-clad aluminum T11050 T2 0.20-0.50 28.30-620 060 60-1000
Electron band

T10150,T10180,

T11050,C12200

TU1,TU2,

T2,TP2

0.08-0.50 10-420

060,H01,H02,

H04,H06

100-2000
Electric appliance 0.50-3.00 ≤6000
Tank belt C12000,C12200 TP1,TP2 0.10-0.20 100-420 H01,H02,H04 ≤6000
New energy belt

T10150,T10180,

T10900,T11050

TU1,TU2,T1,

T2

0.12-0.2 10-420

060,H01,H02,

H04,H06

≤6000



0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone 00.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone 1


ASTM

Composition (%)

Cu+Ag

P

O

Other

C10200

99.95

0.001-0.005

-

balance

C11000

99.9

-

-

balance

C12000

99.9

0.004-0.012

-

balance

C12200

99.9

0.015-0.040

-

balance



Grade
(China)

Grade
(Japan)

Temper

External
Diameter/mm

Tensile Strength Rm MPa

Elongation A (%)

Hardness

No less than

HV

HBW

T2
TU1
TP1
TP2

C1100
C1020
C1201
C1220

O60

All

200

41

40-65

35-60

O50

All

220

40

45-75

40-70

H02

No more than 15

250

20

70-100

65-95

H04

No more than 6

290

-

95-130

90-125

More than 6-10

265

-

75-110

70-105

More than 10-15

250

-

70-100

65-95

H06

No more than 3

360

-

No less than 110

-




0.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone 20.3mmx4mm T2 C11000 R-Cu58 C101 Pure Copper Foil Soft Strip C1100 for Mobile Phone 3
FAQ
1. What's the minimum quantity customer can order?

If we have your size in stock, we can provide any quantity you want.

If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.



2. How can you pay for small sample amount?

We have account, wire transfer for sample amount also ok.



3. Customer do not have express account. How will us arrange the delivery for sample order?

Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.



4. What's our payment terms?

We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.



5. Do you provide free samples?

If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.



6. What's our working time?

We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
