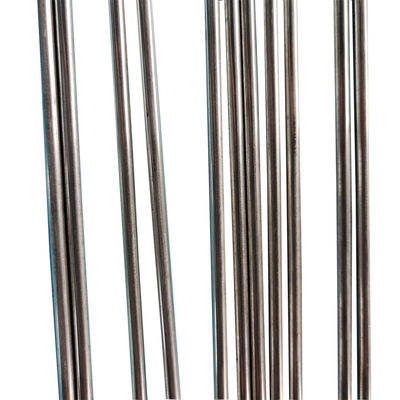

Inconel 625 Welding Wire ERNiCrMo-3 with 1.0mm Diameter for Corrosion Resistant and High Temperature Stability Applications
|
|
Подробная информация о продукте:
Оплата и доставка Условия:
|
Подробное описание продукта
| Химический состав: | ЭРНиКрМо3 | Приложение: | сварка Инконель 625 |
|---|---|---|---|
| Форма: | проволока | Размеры: | 1,0 мм |
| Цвет: | Серебристо-белый | Стандартный: | ASTM, ASTM ASME YB HB BJB ГБ |
| Выделить: | 1.0mm Diameter Inconel 625 Welding Wire,Corrosion Resistant ERNiCrMo-3 Welding Wire,High Temperature Stability Nickel Alloy Welding Wire |
||
AWS 5.14 ERNiCrMo-3 refers to Inconel 625. It maintains stable mechanical property from crystallization to high temperature-980℃(1796℉). The most valuable property of Inconel 625|ERNiCrMo-3 is its strong resistance to pitting, crevice corrosion and stress corrosion generated by oxidation and reducing acid.
AWS 5.14 ERNiCrMo-3 Chemical Composition
| C | Mn | Fe | P | S | Si | Cu | Ni | Co | Al | Ti | Cr | Nb+Ta | Mo | V | W | Others |
| 0.1 | 0.5 | 5 | 0.02 | 0.015 | 0.50 | 0.5 | ≥58.0 | / | 0.4 | 0.4 | 20.0-23.0 | 3.15-4.15 | 8.0-10.0 | / | / | 0.50 |
ERNiCrMo-3 Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength | Elongation |
|
AWS A 5.14 ASME SFA A5.14 |
8.4 |
1287-1348°C 2349-2458°F |
760Mpa 110Ksi |
420Mpa 60Ksi |
27% |
AWS 5.14 ERNiCrMo-3 Welding wire| Welding Rod Cover Gas
| Process | Diameter | Voltage | Amperage | Gas |
| TIG | 0.035’’(0.9mm) | 12.15 | 60-90 | 100% Argon |
| 0.045’’(1.2mm) | 13.16 | 80-110 | 100% Argon | |
| 1/16’’(1.6mm) | 14.118 | 90-130 | 100% Argon | |
| 3/32’’(2.4mm) | 15.20 | 120-175 | 100% Argon | |
| 1/8’’(3.2mm) | 15.20 | 150-220 | 100% Argon | |
| MIG | 0.035’’(0.9mm) | 26-29 | 150-190 | 75% Argon+25% Helium |
| 0.045’’(1.2mm) | 28-32 | 180-220 | 75% Argon+25% Helium | |
| 1/16’’(1.6mm) | 29-33 | 200-250 | 75% Argon+25% Helium | |
| SAW | 0.035’’(0.9mm) | 28-30 | 275-350 | Suitable Flux may be used |
| 0.045’’(1.2mm) | 29-32 | 350-450 | Suitable Flux may be used | |
| 5/32’’(4.0mm) | 30-33 | 400-550 | Suitable Flux may be used |
What is AWS 5.14 ERNiCrMo-3 used for?
ERNiCrMo-3 welding wires and rods are used for joining base materials such as UNS N06625, UNS N08825, and other common steel.
Valve surface weld overlay
Pipeline weld overlay
Waste Incineration Furnace
Instructions for AWS 5.14 ERNiCrMo-3 use:
Generally, it is necessary to use a small welding current to keep the arc stable combustion, and the quality of arc initiation and arc recovery is higher.
Attention should be paid to the quality of the joint, and the preheating and heat treatment temperature similar to that of the base material should be used.
Inconel is a trademark of high-performance nickel-based alloys developed by Special Metals Corporation.
Incoloy is a trademark of high-performance nickel-based alloys developed by Special Metals Corporation.
